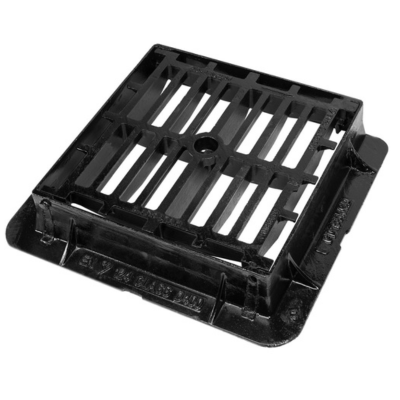

Hinged Gully Grate & Frame 450 x 450 x 100mm
The Hinged Gully Grate & Frame boasts external dimensions of 592mm in length, 538mm in width, and 100mm in depth, with a clear opening of 452mm by 452mm. Its reversible, Type R gratings feature a straight bar design and a captive hinge, offering both versatility and security. The hinged mechanism allows for easy access and maintenance, making it an ideal choice for high-traffic areas where efficiency is paramount.
Engineered to handle a loading class of D400, this gully grate and frame can withstand heavy loads, ensuring longevity and resilience. The substantial waterway area of 1258cm² facilitates efficient drainage, preventing water accumulation and potential damage. Whether for new installations or replacements, this product provides a reliable solution for managing surface water in a variety of settings.
Key Features
- Material: Ductile Iron
- External Dimensions: 592mm (L) x 538mm (W) x 100mm (D)
- Clear Opening: 452mm x 452mm
- Loading Class: D400
- Accreditation: BS EN124-2:2015, HA102/00, HA104/09
- Gratings: Reversible, Type R, Hinged, Straight Bar, Captive Hinge
- Water Way Area: 1258cm²
