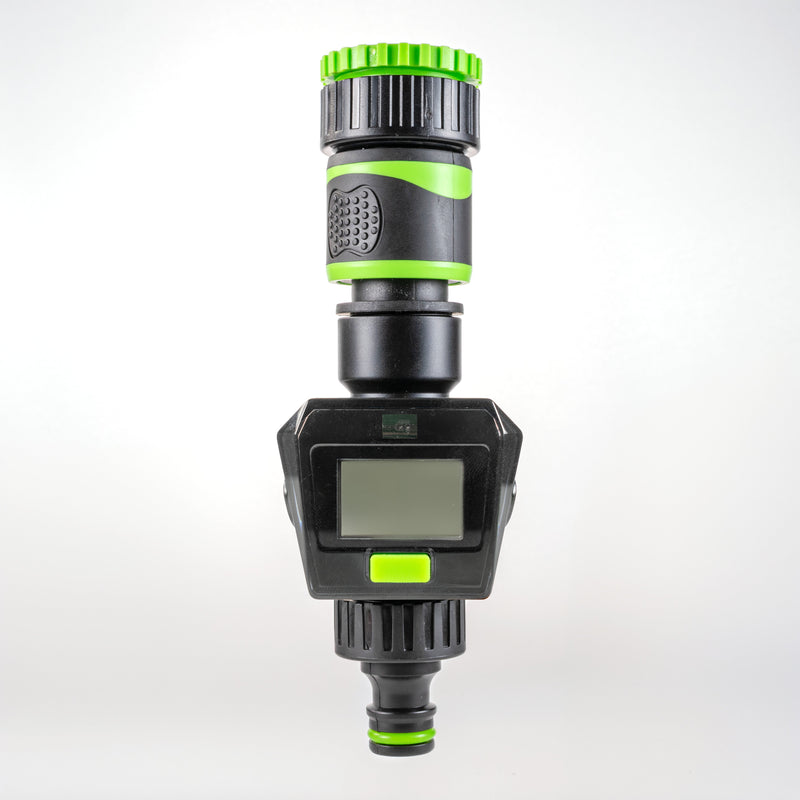

Water Flow Meter Green

A water flow meter is an instrument used to measure the volume or mass of water passing through a pipe. These devices are essential in various industries, including water management and irrigation. By providing accurate measurements, water flow meters help in managing water resources efficiently. By providing real-time data, these devices enable better decision-making for water conservation efforts and infrastructure planning. In residential, industrial and agricultural contexts, flow meters ensure optimal water distribution, contributing to operational efficiency.

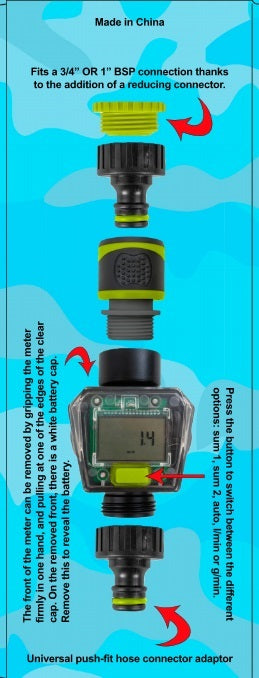

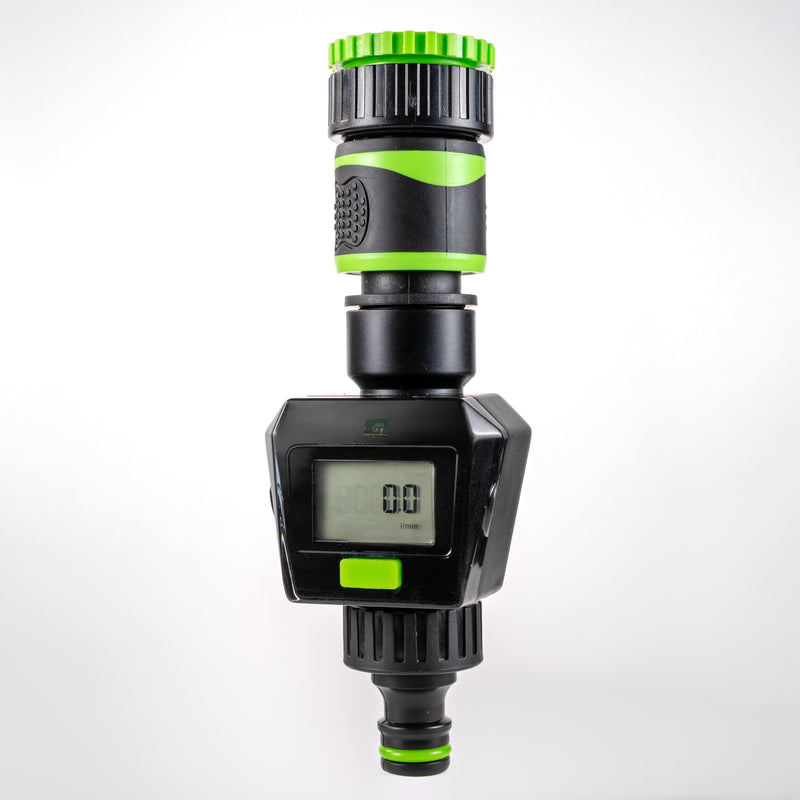

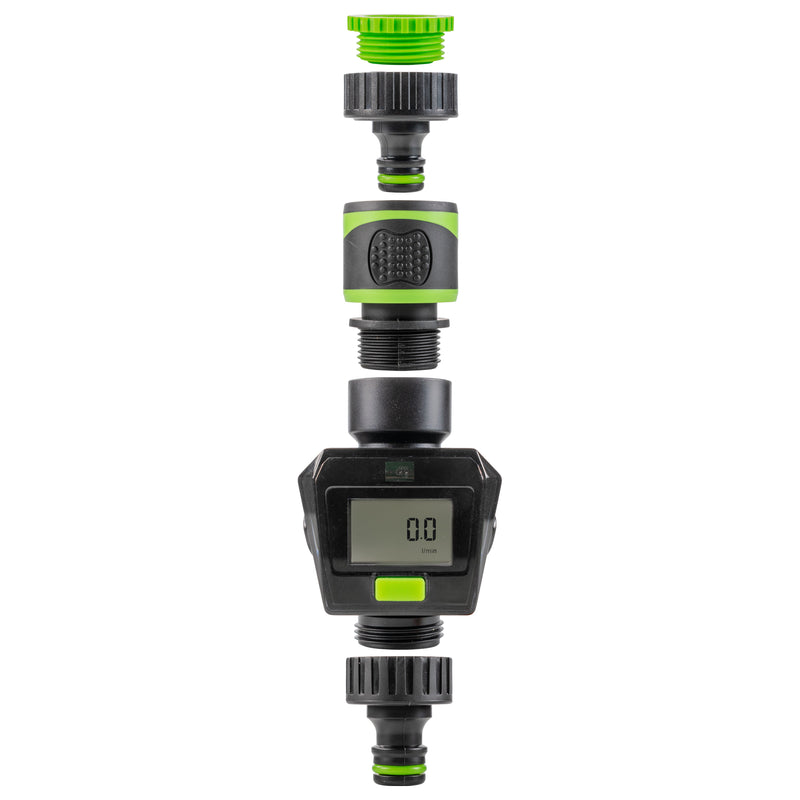

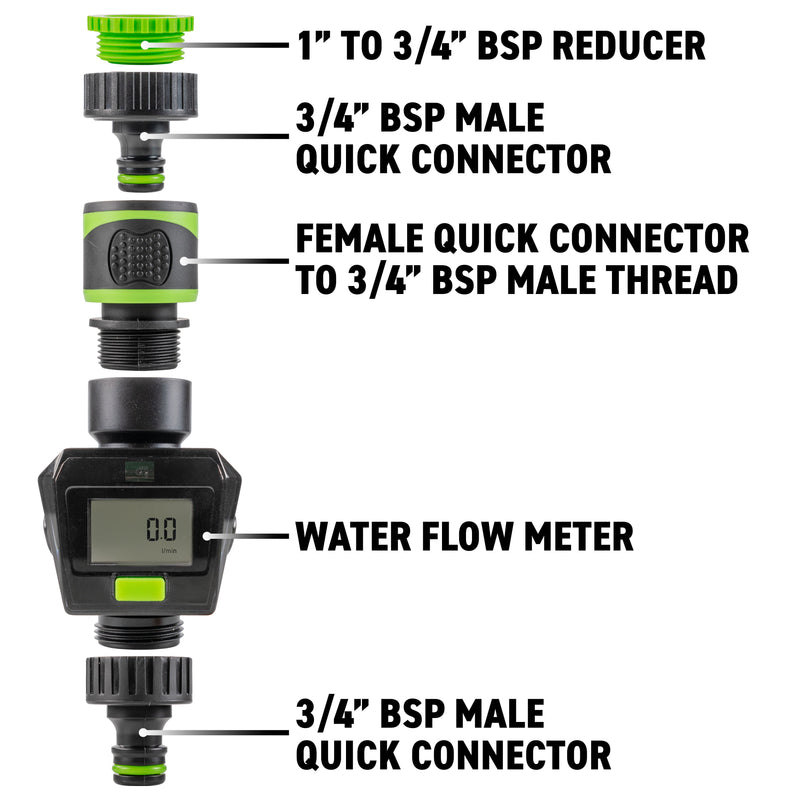

This water flow meter comes with a removable reducing connector which fits a ¾” or 1” BSP connection. This standardized threading ensures a secure fit, preventing leaks and ensuring optimal water flow. The meter has a universal push-fit hose connector adaptor outlet to easily connect to hose pipe.

This product requires a CR2032 Lithium 3V Coin Cell Battery (included)

The front of the meter can be removed by gripping the meter firmly in one hand, and pulling at one of the edges of the clear cap. On the removed front, there is a white battery cap. Remove this to reveal the battery.

Press the button to switch between the different options: sum 1, sum 2, auto, l/min or g/min.

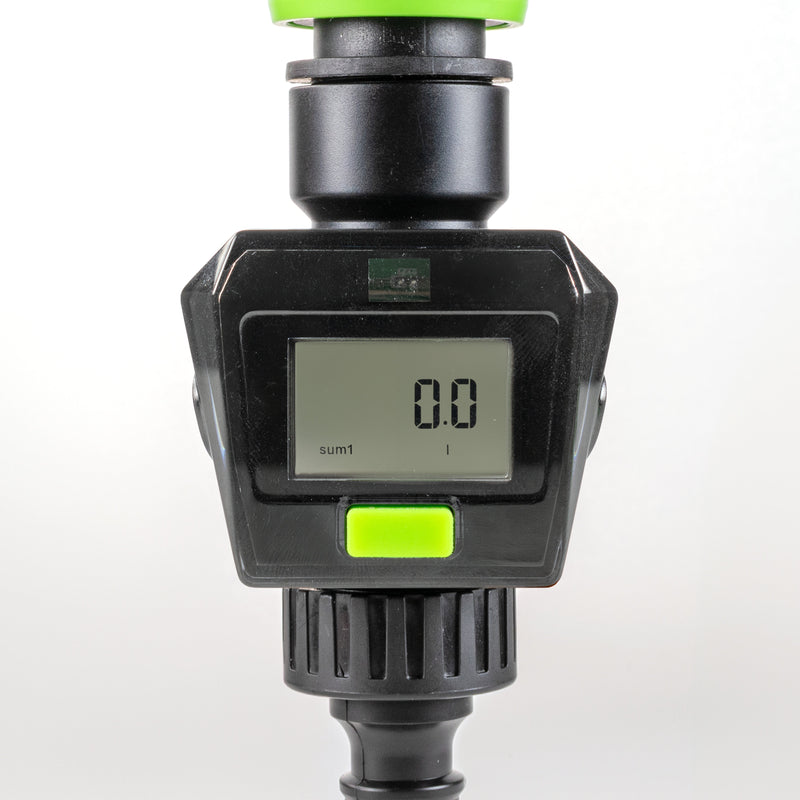

Selecting the unit/minute will show you the current rate of flow. Auto shows you how much water has been used in this active session. Sum 1 and 2 will continue to track the total water used since it was last reset. You can reset Sum 1 or 2 back to 0 by selecting them and holding down the button.

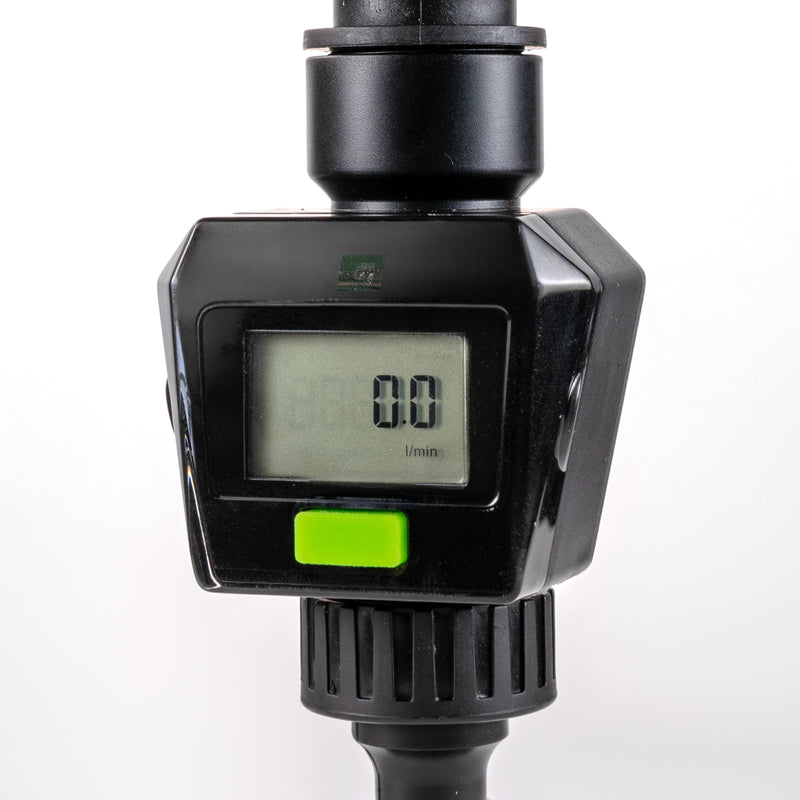

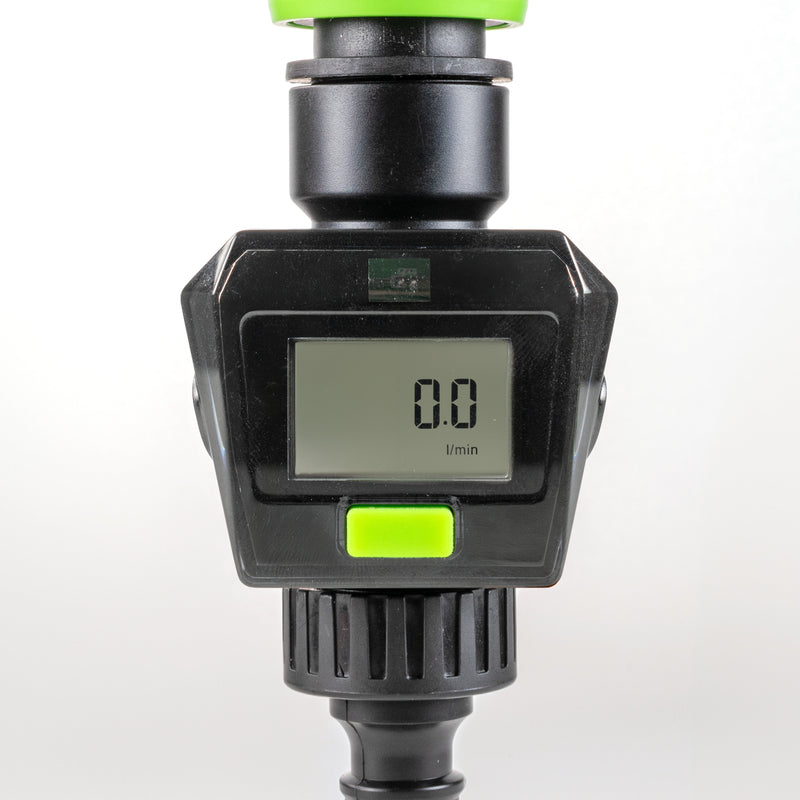

You can switch between litres and gallons by pressing the button until the l/min or g/min appears on the screen. The hold down the button for 3 seconds, and the measurement will switch. This select will show the current flow rate/minute.

As Sum 1 and 2 are manually reset, you can use them to tally a period of your choice. For example, you could use Sum 1 to track daily water usage, and Sum 2 to track the month usage. Don’t forget to hold down the button and reset the figure!

• Product material ABS

• Testing range 2-50L/min

• Environment temperature 5-60°

• Test tolerance +/- 5
